| Model Name |
|
| Screen Diagonal
|
12.1 inch |
| Resolution
|
800 x 600 |
| Viewing Angle
|
R-80,L-80,U-65L,75 |
| Brightness
|
450 cd/m2 |
| Support Color
|
16.2M/262K |
| Contrast Ratio
|
700 |
| Response Time
|
10msec |
| Backlight Life
|
50,000 (Min) |
Touchscreen Type
|
5-wire Analog Resistive |
| Surface Treatment
|
3H |
Durablility
|
10,000,000times |
| Transparency |
80% |
Operating Temperature
|
-10°C ~ 60°C
|
| Storate Temperature |
-20°C ~ 70°C |
| Humidity |
20% ~ 80% |
| Input |
Analogue RGB / HDMI 1.4(TMDS) |
| OSD |
Auto,Menu,Select,Down,Up,Power (5 Keys) |
| Power |
DC 12V, 3A |
| |
|
|

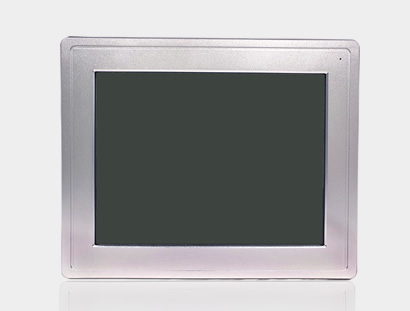

12.1 “ SVGA LCD panel with LED backlight
